Sale!

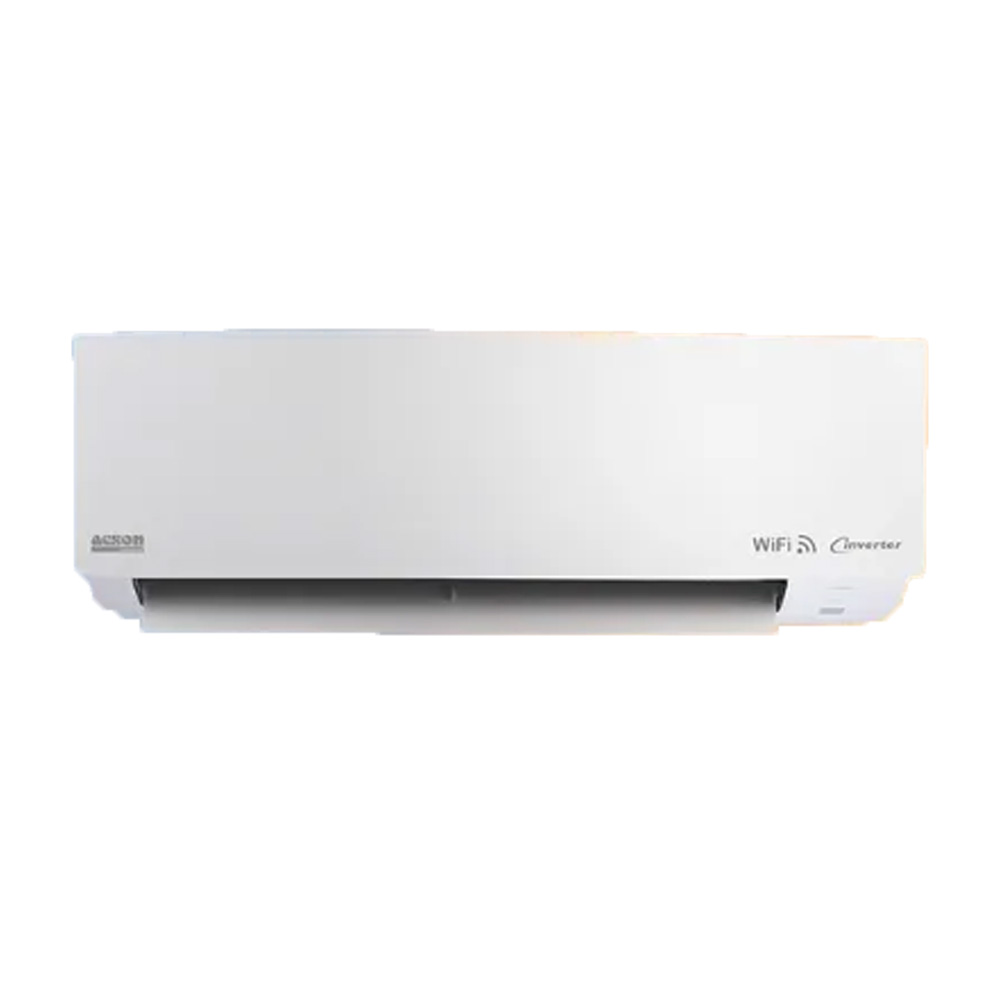

Acson Air Cond 1.0HP A3WMY10N (INVERTER) WIFI

RM1,449.00


R32 GREENERY REFRIGERANT

The R32 refrigerant has a low Global Warming Potential (GWP), which one-third lower as compared to R410A and consists of zero Ozone Depletion Potential (ODP) at the same time.


Energy Saving

Acson’s R32 Inverter have attained the highest 5-Star Energy Efficiency Rating endorsed by Energy Commission of Malaysia and energy saving can reach up to 48%*.


Ultimate Fast Cooling

With Rapid Cool technology, AVO+ air conditioner will adjust on the fan speed according to the temperature difference between the room and set temperature automatically. The integration of power and speedy airflow provides rapid cooling to cool down your room in 35% reduce in time required to reach set temperature.


Long & Wide Air Flow

Long airflow distributes the cool air gently and evenly across the room. The reach of comforting air is up to 6 meters away from the unit.

Features
for your home

R32 Refrigerant R32 refrigerant does not contribute to ozone depletion and helps to preserve Global climate changes.

Automatic Restart Unit can be automatically restarted once the power supply is back to normal and keeping the last setting condition.

Self Diagnosis System With ACSON sensors and intelligent control board, error can be detected by blinking LEDs.

Silent ModeIt will bring dawn the sound level to an unobstructive 21 dBA and it is perfectly convenient during the night.

Easy use controller The ergonoically designed wireless control enables the unit to be under your control all time.

Sleep Mode Gradually increase the setting temperature to provide a comfortable surrounding for sleeping.

Beauty Within Give a fresher, healthier and more refreshing environment for better health and sustainability lifestyle.
A3WMY 10N
A3LCY 10F9
A3WMY 15N
A3LCY 15F
Performance
Cooling Capacity (Btu/h)
9,000 (4,400 – 9,900)
12,100 (4,400 – 13,000)
EER (W/W)
3.49
3.17
EER (Btu/h/W)
11.84
10.80
CSPF (Wh/Wh)
5.02
4.53
Air Flow
(Ls¯¹ / CFM)
Silent
 78/165
78/165
Low
101 / 215
109 / 232
Medium
128 / 272
133 / 282
High
163 / 345
169 / 358
Turbo
178 / 378
185 / 392
Sound Pressure Level
(dBA)
Indoor Silent / Low / Medium / High / Turbo
21 / 29 / 34 / 40 / 41
22 / 30 / 34 / 41 / 42
Outdoor
47
46
Electrical Data
Power Source (V / ? / Hz)
220 – 240 / 1 / 50
Nominal Total Input Power (W)
760 (250 – 810)
1,120 (300 – 1,300)
Nominal Operating Current (A)
3.40 (1.60 – 3.59)
4.97 (1.86 – 5.75)
Physical Specification
Indoor Unit Dimension
Height =288mm
Width = 800mm
Depth = 204mm
Weight = 9 / 19.84 (kg / lb)

Outdoor Unit Dimension
Height = 485mm (1.0HP), 550mm (1.5HP)
Width = 566mm (1.0HP), 658mm (1.5HP)
Depth = 256mm (1.0HP), 273mm (1.5HP)
Weight = 18 / 39.68 (kg / lb) – 1.0HP
Weight = 24 / 52.91 (kg / lb) – 1.5HP

Signature S
Technical Information
Refrigerant
R32
Refrigerant Charge (kg / lb)
0.42 / 0.93
0.50 / 1.10
Suction Pipe Size (mm / inch)
9.52 / 3/8
9.52 / 3/8
Discharge Pipe Size (mm / inch)
6.35 / 1/4
Piping Length (Max)
20m
Piping Height (Max)
15m

Out of stock

Additional information

Weight 27 kg
